(2024-04-03 初稿)
過去に何度もBluetooth接続で、スピーカーやマウスをつないだけど、接続方法をすぐに忘れてしまうのでメモを残す。
今回は、デスクトップのDebianに有線接続でヘッドホンをつないでいたんだけど、少しケーブルが短かったため、ヘッドホンを付けたまま自由な姿勢がとれるようにBluetooth接続のワイヤレスヘッドホンをつなぐことを目的とした。
まずは、筆者の環境を確認。
$ cat /etc/debian_version 12.5 $ uname -a Linux hoge 6.1.0-18-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.76-1 (2024-02-01) x86_64 GNU/Linux
今回は、以下のサイトを参考にさせていただいた。多謝。m(__)m
デスクトップPCにはBluetoothアダプタが付いていなかったので、以下のUB500というBluetooth USBアダプタを購入した。
上記USB500をデスクトップPCに挿し込んでから、lsusbで確認。
$ lsusb (前略) Bus 001 Device 003: ID 2357:0604 TP-Link TP-Link UB500 Adapter (後略)
ちゃんと認識しているよう。
今回接続するのは、骨伝導のワイヤレスヘッドホンでというもの。
以下のリンクよりも古い型なので、少し形状が異なるけど…
参考にしたサイトにあるとおり、Bluetooth関連のパッケージをインストールして、起動時から使えるように。
$ sudo apt update $ sudo apt install bluetooth bluez bluez-tools rfkill $ sudo systemctl start bluetooth $ sudo systemctl enable bluetooth
以下のコマンドで、Bluetoothのstatusを確認。
$ sudo systemctl status bluetooth ● bluetooth.service - Bluetooth service< Loaded: loaded (/lib/systemd/system/bluetooth.service; enabled; preset: en> Active: active (running) since Sat 2024-03-30 15:10:32 JST; 1min 14s ago Docs: man:bluetoothd(8) Main PID: 685 (bluetoothd) Status: "Running" Tasks: 1 (limit: 19037) Memory: 3.3M CPU: 28ms CGroup: /system.slice/bluetooth.service └─685 /usr/libexec/bluetooth/bluetoothdr
rfkillのリストに入っていないことを確認。
$ rfkill list
bluetoothctlコマンドで、scanしてペアリングする。
$ bluetoothctl [bluetooth]# scan on [NEW] Device EB:06:EF:66:A9:E1 X 11
X11のヘッドホンが見つかれば、スキャンは成功。
つづけて、bluetoothctlコマンドの中で、ペアリング。
# pair EB:06:EF:66:A9:E1 Attempting to pair with EB:06:EF:66:A9:E1
たぶんペアリングは問題なく終了すると思われる。
問題は、次のコネクト。筆者の場合は、bluetoothを再起動したりして、何度かチャレンジする中で、以下のとおり接続に成功した。
# connect EB:06:EF:66:A9:E1
Attempting to connect to EB:06:EF:66:A9:E1
[CHG] Device EB:06:EF:66:A9:E1 Connected: yes
[NEW] Endpoint /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep8
[NEW] Endpoint /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep6
[NEW] Endpoint /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep5
[NEW] Endpoint /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep3
[NEW] Endpoint /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep1
[NEW] Transport /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep5/fd0
Connection successful
[CHG] Transport /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep5/fd0 State: active
[CHG] Transport /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep5/fd0 Volume: 0x0050 (80)
[CHG] Device EB:06:EF:66:A9:E1 ServicesResolved: yes
[CHG] Transport /org/bluez/hci0/dev_EB_06_EF_66_A9_E1/sep5/fd0 State: idle
接続に成功したら、exitコマンドでbluetoothctlコマンドを抜ける。
# exit
毎回、Bluetoothctlコマンドを叩くのは大変なので、以下のスクリプトを利用すると良い。
$ cat bin/blule-connect #/usr/bin/env bash # bluetooth connect bluetoothctl << EOC connect EB:06:EF:66:A9:E1 quit EOC
それでもコマンドを叩くのはちょっとという方は、以下のGUIをインストールすると良い。
筆者の場合、LXDEを使っているので、以下のとおり。
$sudo apt-get install blueman
$ sudo apt install gnome-bluetooth
bluedevil (for KDE)
$ apt install bluedevil

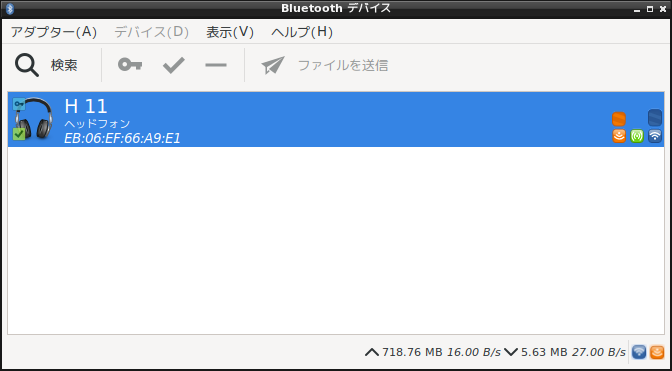

bluemanをインストールした状態は、以下のとおり。
以上、他の方の参考になれば幸い。
